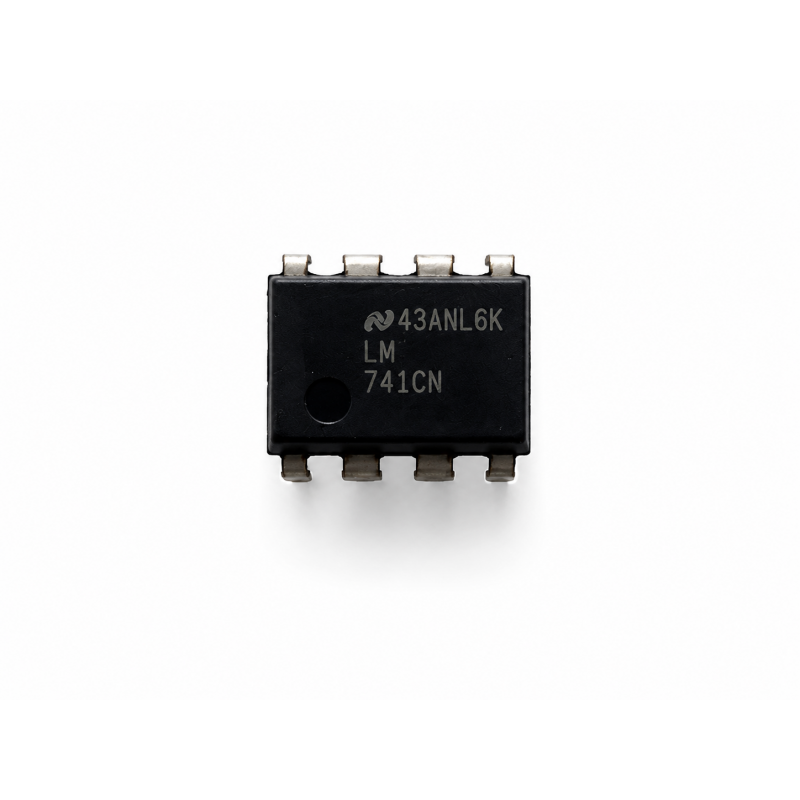

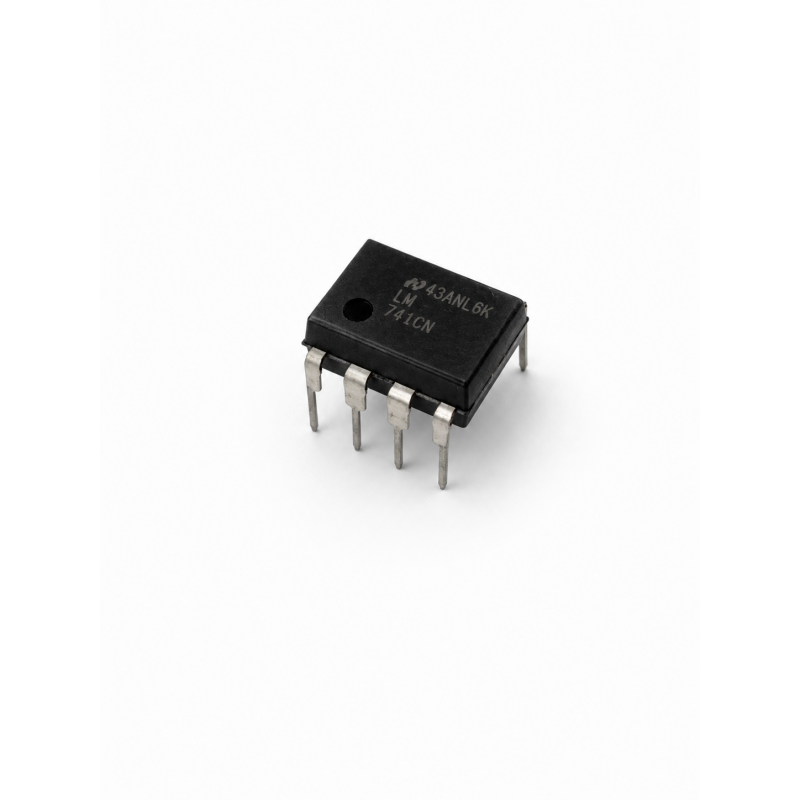

LM741CN - Single operational amplifier ±18V 1MHz

Single-channel general-purpose operational amplifier, the LM741 is an analog electronics classic.
Supply voltage up to ±22 V, output short-circuit protection and no latch-up.
DIP-8 through-hole package, ideal for prototyping, education and repair.

Technical specifications :


• Number of amplifiers : 1
• Supply voltage : single or dual, up to 44 V total (˜ ±22 V max)
• Gain-bandwidth product (GBW) : ˜ 1 MHz
• Slew rate : ˜ 0.5 V/µs
• Frequency compensation : internal (no external components)
• Protections : input and output overload, short-circuit, no latch-up on common mode excursion
• Compatibility : direct replacement for 709C, LM201, MC1439 and 748 in most applications
