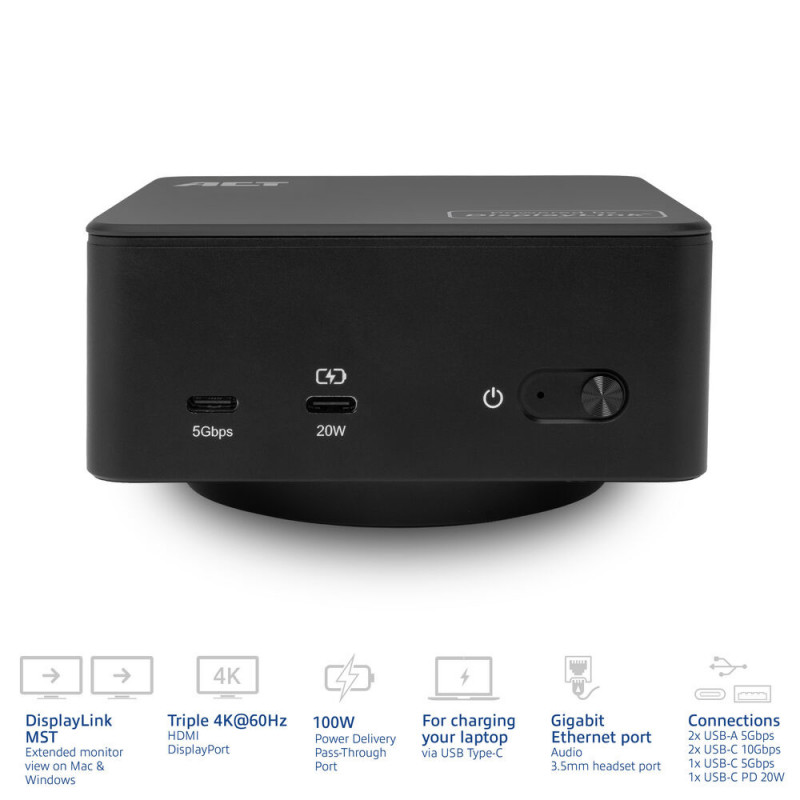

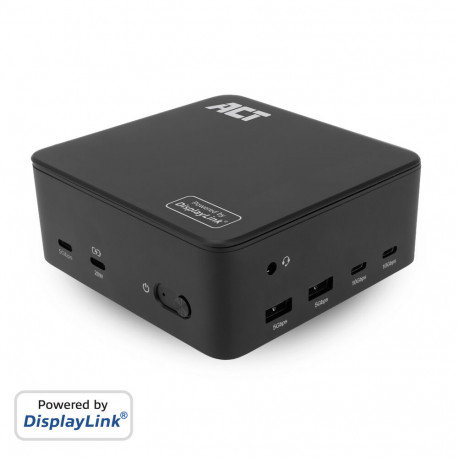

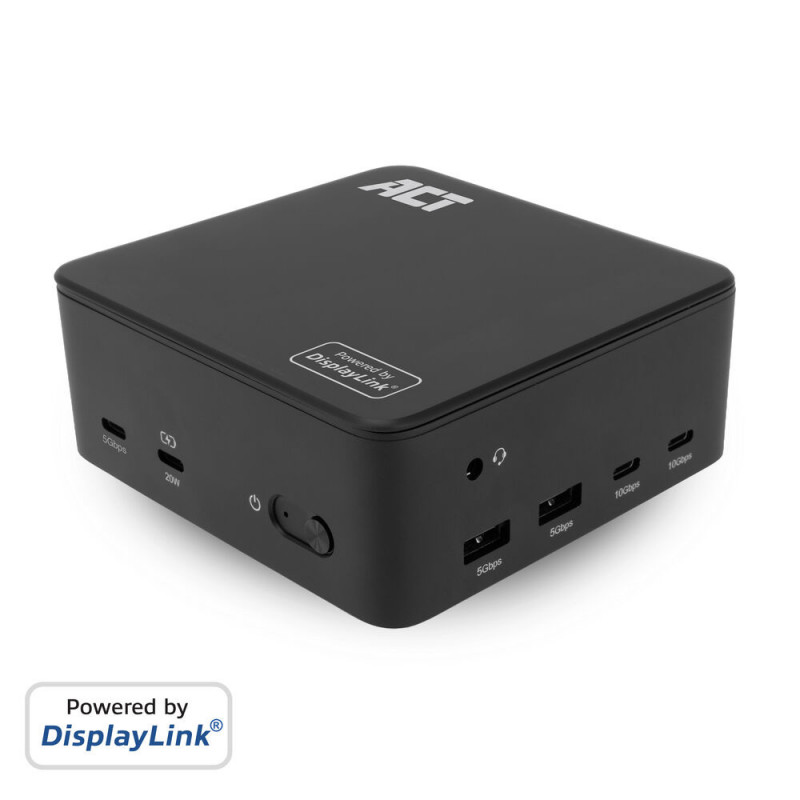

USB-C Triple 4K Docking Station

Universal | DisplayLink | 3x 4K at 60 Hz | HDMI | DisplayPort | 100 W PD Pass-Through | 1x USB-C PD 20 W | 2x USB-C 10 Gbps | 1x USB-C 5 Gbps | 2x USB-A 5 Gbps | LAN | Audio

Expand your Windows or MacOS computer workspace with three 4K HDMI/DisplayPort screens using DisplayLink technology

Power adapter (135 watts) included to power the docking station and charge your laptop via the supplied USB-C cable (max. 100 W)

USB-C Power Delivery 20 W port for fast charging of your smartphone or tablet

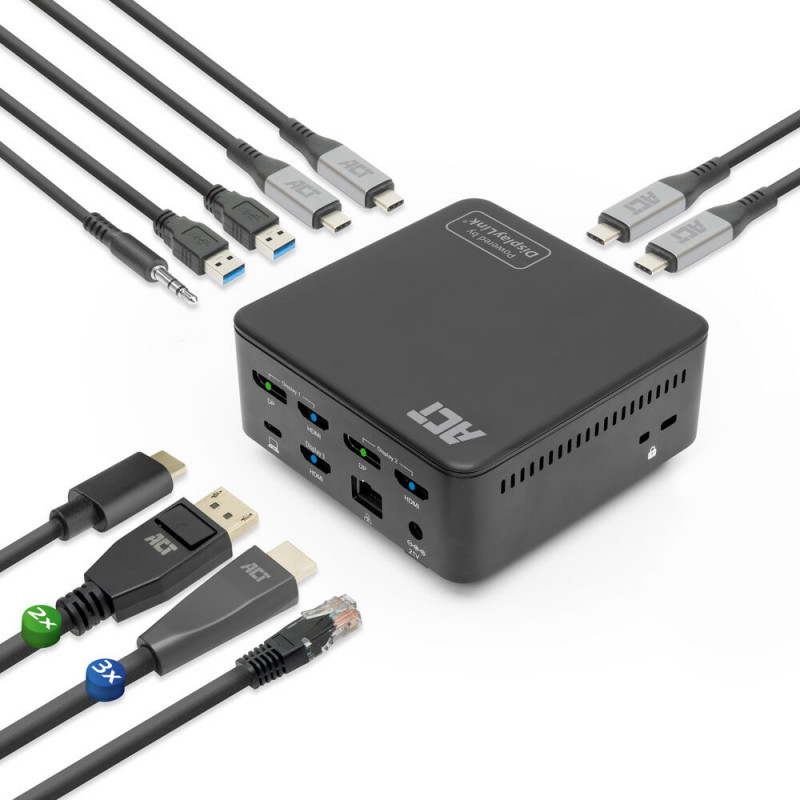

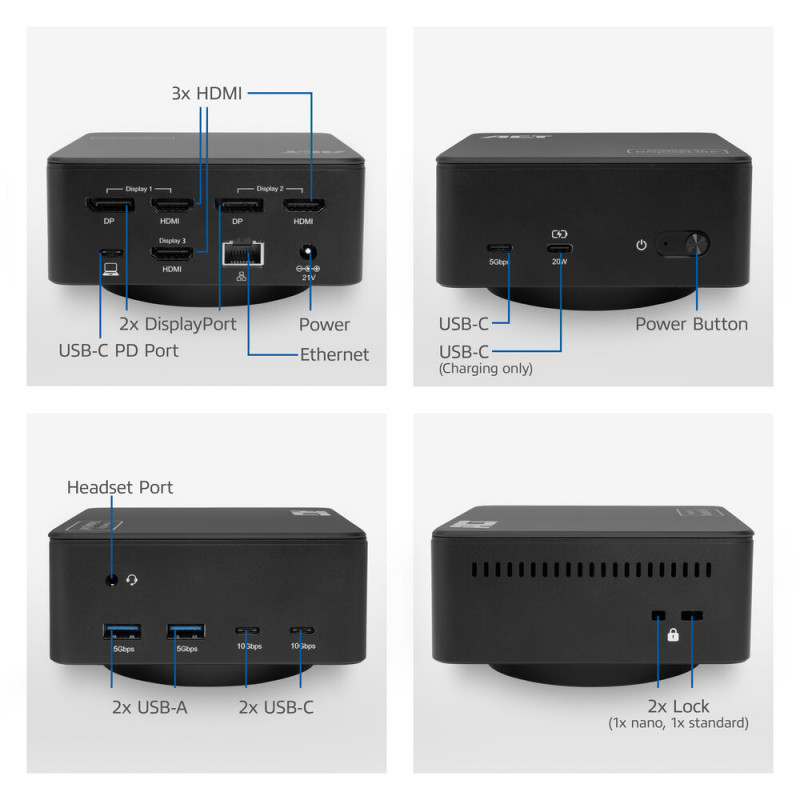

Additional features: three USB-C ports (2x 10 Gbps + 1x 5 Gbps), two USB-A ports (5 Gbps), one Gigabit LAN port, a headphone connection, security slots (standard + nano) and a USB-A to USB-C adapter

Power button for energy savings

Can be mounted to a monitor using the supplied VESA adapter plate

Universal use with most laptop brands such as HP, Dell, Lenovo, Acer and Asus

Specifications

Brand

ACT

Product category

Docking stations

USB Type-C

Yes

Connection cable connector

USB C - USB C

Connection cable

100 cm

Connection cable type

Replaceable

Power ports

1

Power pass-through

Yes

Power device charging

Yes

Max. output power

100 W

Supported Power delivery profiles

12.0V up to 3.0A, 15.0V up to 3.0A, 20.0V up to 5.0A, 5.0V up to 3.0A, 9.0V up to 3.0A

Device charging ports

USB C power 20W

Connections

DisplayPort, HDMI, 3.5mm jack, RJ45, USB, USB C

Peripheral ports

3.5mm jack, USB (x2), USB C (x3)

USB 3.2 Gen 1 - Peripheral ports SuperSpeed 5 Gbps

USB (x2), USB C

USB 3.2 Gen 2 - Peripheral ports SuperSpeed 10 Gbps

USB C (x2)

Required on laptop

One free USB 3.2 Gen 1 - SuperSpeed (USB 3.0) C port with alternate DisplayPort mode

Screen ports

DisplayPort (x2), HDMI (x3)

MST support

Yes

4K compatible

Yes

Max. resolution @ 30Hz

4096 x 2160

Max. resolution @ 60Hz

4096 x 2160

Number of screens

3

Video signal

DisplayPort, HDMI, USB-C (Alt mode)

Video specifications

DisplayPort 1.4, HDMI Ultra High Speed

Video version

DisplayPort 1.4, HDMI 2.0

Network speed

10/100/1000 Mbps

PXE boot support

Yes

Chipset

DisplayLink DL6950

Power supply

External power supply

Power supply specifications

21.0V 6.43A 135.0W
