Ubiquiti PoE+ Injector 30W U-PoE+-2,5G

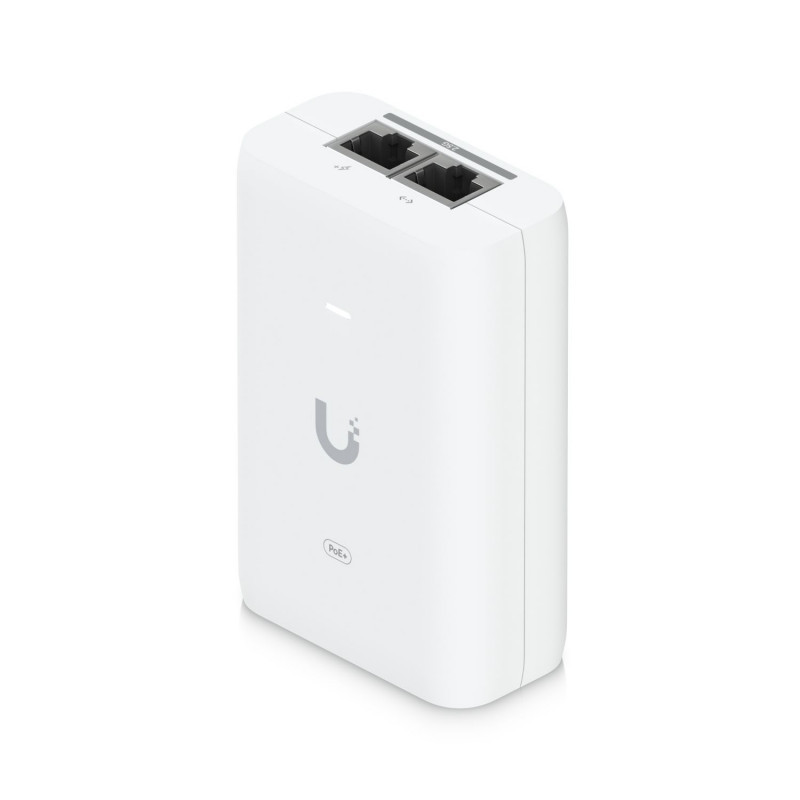

New Ubiquiti PoE+ Injector 30W U-PoE+-2,5G View larger

Description

Ubiquiti PoE+ Injector 30W U-PoE+-2,5G
  • Dimensions: 93 x 62 x 35 mm
  • Weight: 156 g
  • Output Voltage: 48V DC @ 0.65A
  • Rated Voltage: 100—240V AC @ 50/60Hz
  • LAN Activity Indicator: No
  • Gigabit LAN Port: Yes
  • Remote Reset Capability: No
  • Reset Button: No
  • 2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
  • Clamping Protection: 11V Data, 60V Power
  • Data In / PoE: RJ45 Shielded Socket
  • Input Current: Max 0.75A
  • Inrush Current: <150A peak @ 230V AC
  • Efficiency: >87%
  • Switching Frequency: Max 65 kHz
  • Output Ripple: Max 1%
  • Line Regulation: ≤ 1%
  • Load Regulation: ≤ 3%
  • Max Surge Discharge: 1500A (8/20 μs power)
  • Peak Pulse Current: 36A (10/1000 μs data)
  • Response Time: <1 ns
  • Shunt Capacitance: <5 pF data
  • Surge Protection: Differential and common mode
  • Storage Temperature: -30 to 70°C
  • Operating Temperature: 0 to 40°C
  • Operating Humidity: 10 to 95% non-condensing
  • NDAA Compliant: Yes
  • Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

UBIPOE30W

46059

Ubiquiti

UACC-PoE+-2.5G

EUR 23.90

In Stock
