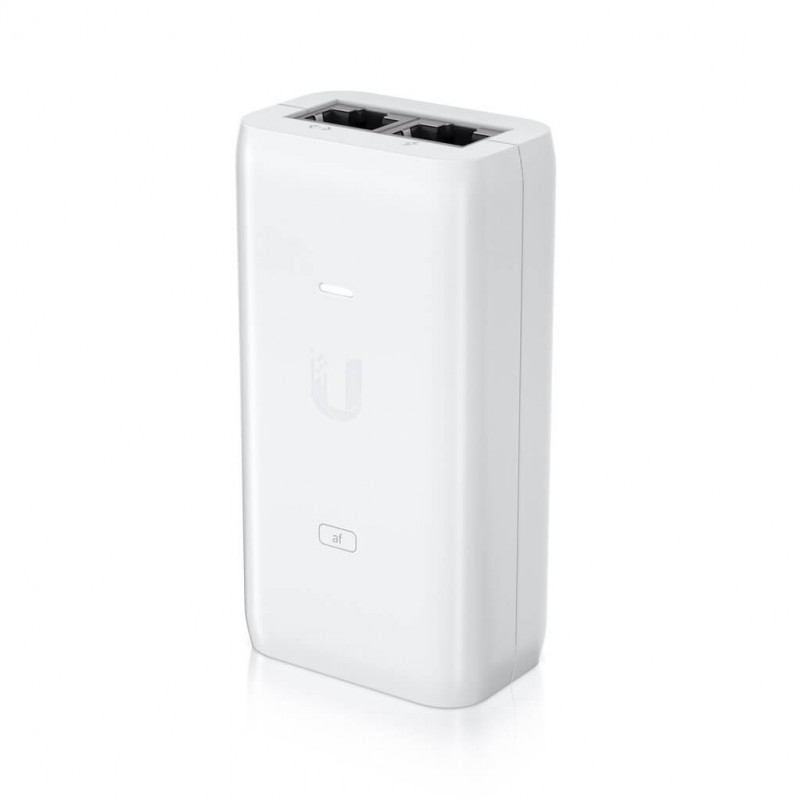

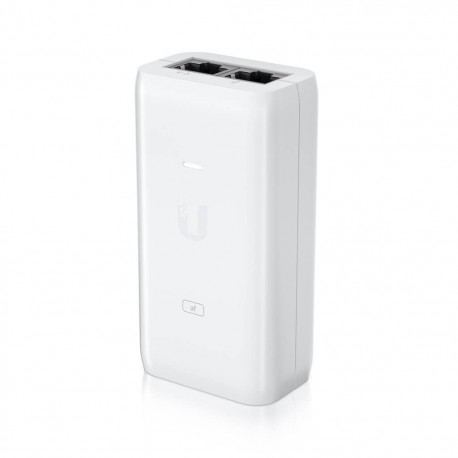

Ubiquiti POE Injector 15W U-PoE

New

Ubiquiti POE Injector 15W U-PoE

View larger

Description

Ubiquiti POE Injector 15W U-PoE

Dimensions: 86 x 46 x 33 mm
Weight: 100 g
Output Voltage: 48V DC @ 0.32A
Rated Voltage: 100—240V AC @ 50/60Hz
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: No
Reset Button: No
2-pair Powering: Pins 4, 5 (+) and 7, 8 (-)
AC Connector: IEC-320 C6
Clamping Protection: 11V Data, 60V Power
Data In / PoE: Shielded RJ45 Socket
Input Current: Max 500 mA
Inrush Current: <100A peak at 25°C
Efficiency: > 84.25%
Switching Frequency: 65 kHz
Output Ripple: 200 mV pp
Line Regulation: ≤ 3%
Load Regulation: ≤ 5%
Max Surge Discharge: 1500A (8/20 μs, power)
Peak Pulse Current: 36A (10/1000 μs, data)
Response Time: <1 ns
Shunt Capacitance: <5 pF (data)
Surge Protection: Differential and common mode
Storage Temperature: -30 to 70°C
Operating Temperature: 0 to 40°C
Operating Humidity: 10 to 95% non-condensing
NDAA Compliant: Yes
Certifications: CE, FCC, IC, UL, CCC

Catalog reference: UBIPOE15W

Reference: 46058

Brand: Ubiquiti

MPN: U-PoE
