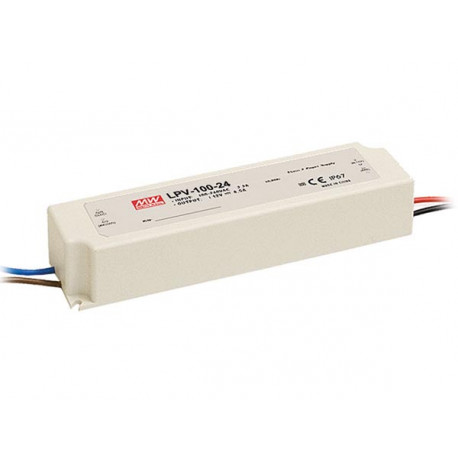

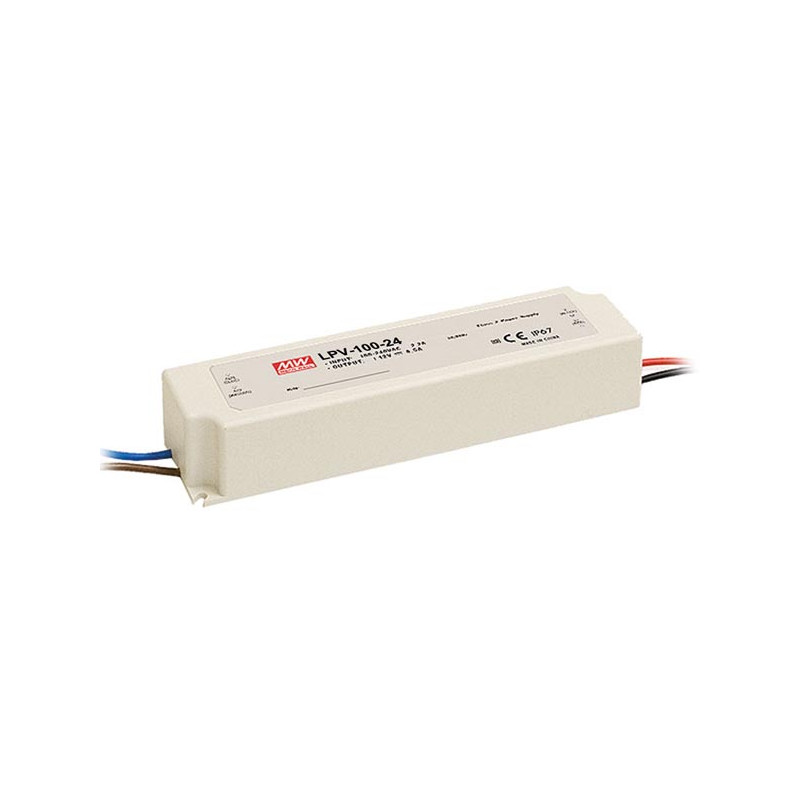

Switching Power Supply single output 100 W 24 V

Characteristics

• Direct electric power
• Universal AC input / full range
• Fully insulated plastic housing
• Protection against: short circuit / overvoltage
• Dimensions (L x W x H): 190 x 52 x 37 mm

Output

• Nominal electric power: 4.2 A
• DC voltage: 24 V
• Nominal power: 100.8 W

Input

• Voltage range: 90-264 VAC 127-370 VDC
• Frequency range: 47-63 Hz
• AC electric power: 1.2 A / 230 VAC; 2.2 A / 115 VAC
