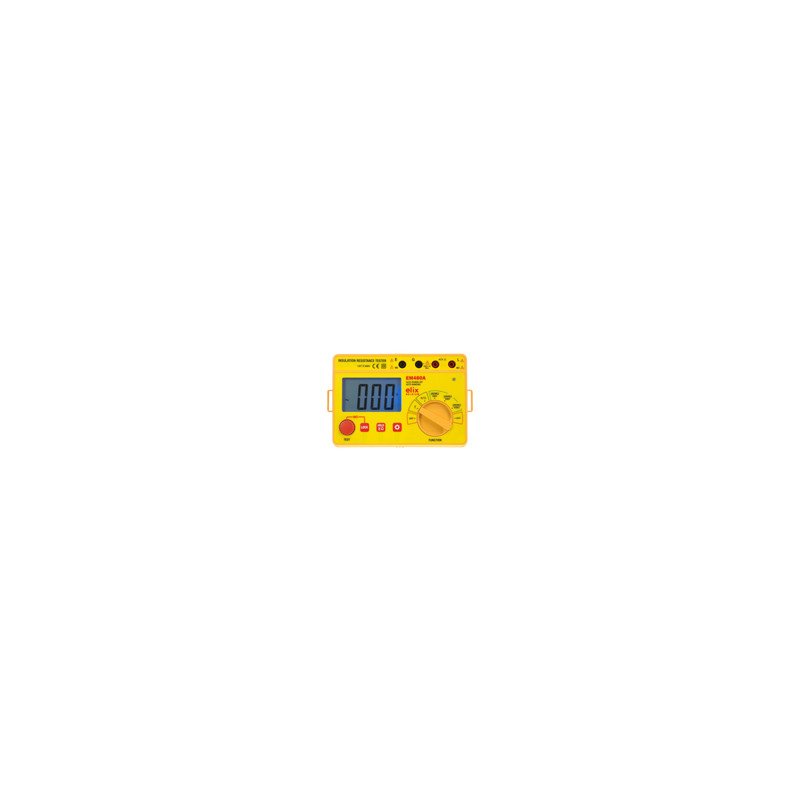

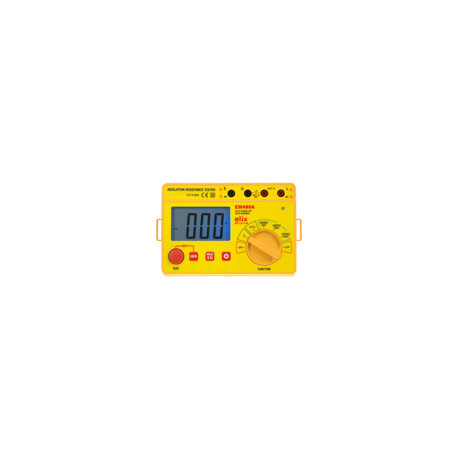

Elix - Digital Insulation Meter

Specifications

• Power supply: 6 x AA 1.5V batteries
• Dimensions: 168 x 110 x 62 mm
• Weight: 485g with accessories
• LCD display, 3 ½ digits, with maximum display 1999
• MO accuracy - Ranges: 2000MO/ 250V, 2000MO/ 500V: ±3% reading + 3c and 2000MO/ 1000V: 5% reading + 5c
• Scales displayed: 2MO, 20MO, 200MO, 2000MO
• Current rating: 1mA
• Continuity test: built-in audible signal < 50O
• Approval: CAT II-600V-CE-2010
• High resistance insulation measurement 0.25 - 2000MO
• Polarity indication: (-) indicates negative polarity
• Low battery indication: ?
• Display overflow: "1" or "-1
• Includes: Test leads and 6 x AA 1.5V batteries
• AC voltage
  Ranges: 0 - 600V
  Resolution: 1V
  Accuracy: ±1.5% reading + 5c
• Resistance
  Ranges: 0 - 200O
  Resolution: 0.1O
  Accuracy: ±1% reading + 3c
