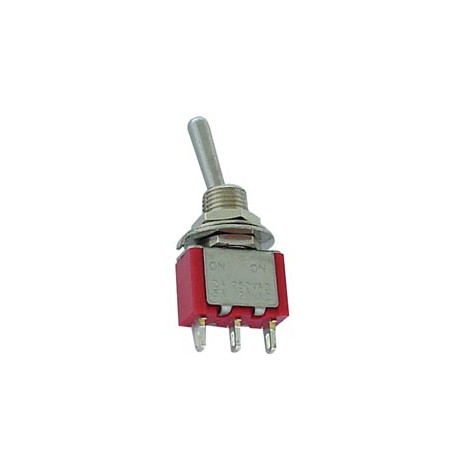

Single pole ON-OFF switch - Soldering lugs

Specifications

• Switching position:
• 2-3: ON
• OPEN: NONE
• 2-1: ON
• Breaking capacity: 5A with a resistive load of 120Vac or 28Vdc
• Electrical life: 50,000 on/off cycles at full load
• Initial contact resistance: max. 10mohm at 2-4VDC / 10mA for gold and silver
• contacts
• Insulation resistance: min. 1000Mohm
• Working temperature: -30°C to +85°C
