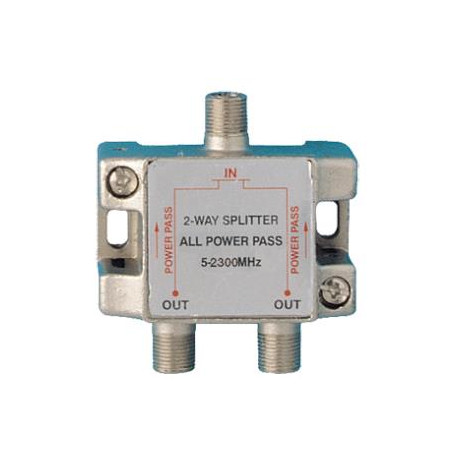

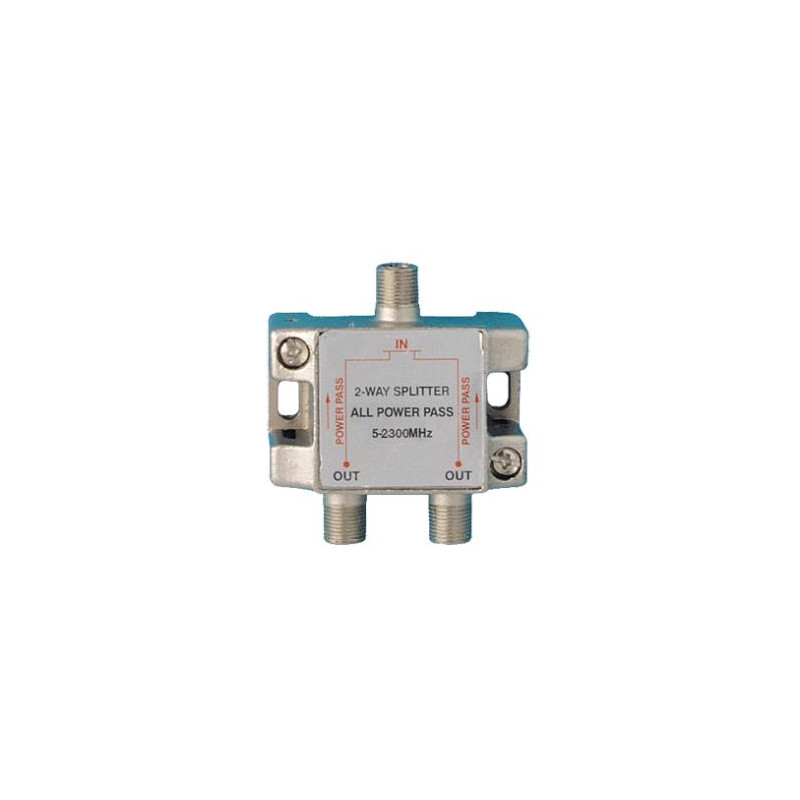

Satellite Splitter - "F" Connectors - 1 IN / 2 OUT

“High-Q” satellite splitter
“F” type connectors
Cast zinc housing, nickel plated
2 integrated ground terminals
Through current: 24VDC 0.5A max
75 ohm female “F” connector to all ports
Screen factor:

5 - 470MHz ≥ 75dB

471 - 862MHz ≥ 65dB

950 - 2050MHz ≥ 55dB

2050 - 2300MHz ≥ 45dB
