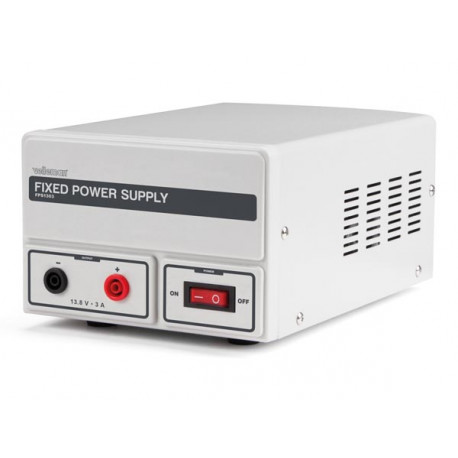

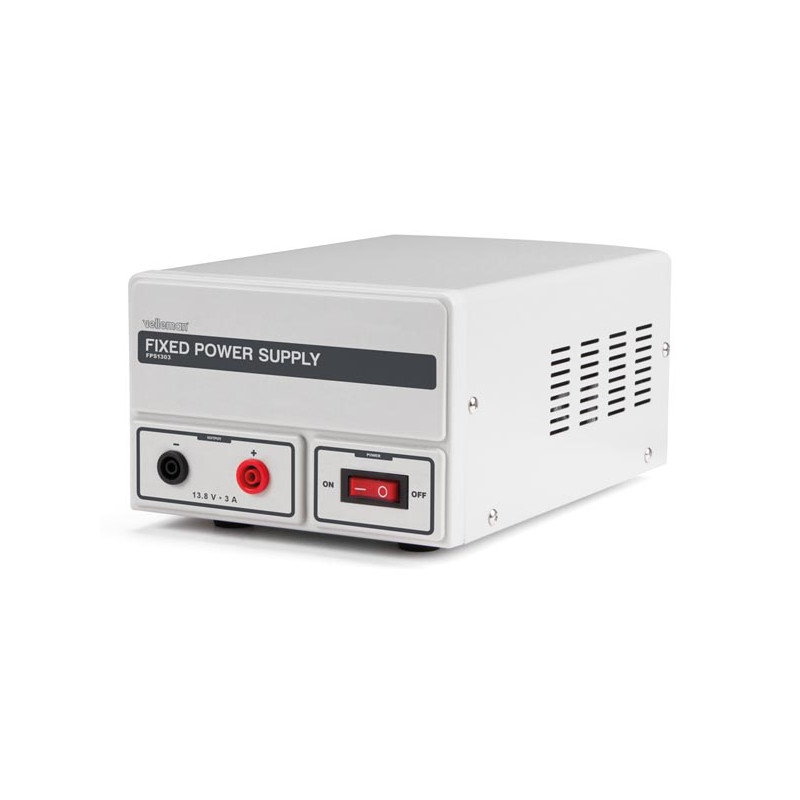

Alimentation fixe 13.8 Vcc 3A

Features

• linear design
• protection mode: current limitation
• colour: white-grey
• insulated sockets
• fuse protection

Specifications

• input voltage: 230 VAC 50 Hz 0,9 A 95W pf: 0,75
• output voltage: 13.8 VDC
• output current: 3 A
• ripple voltage: 100 mV
• dimensions: 110 x 190 x 80 mm
• weight: 1.9 kg
• fuse: F1
